Pivot pins, Titanium, and other Precision items

Precision Stainless Folder Pivot Pins



1/8" x 3/8" L      $2.50 each    15 or more $2.00 each              drilled and taped for 2-56 Button Head Screws (included)

3/16" x 3/8" L    $2.50 each    15 or more $2.00 each             drilled and tapped for 4-40 Button Head Screws (included)

1/4" x 1/2" L       $2.50 each    15 or more $2.00 each           drilled and tapped for 8-32 Button Head Screws (included)

82 degree Countersink

$  9.50 each         For Flat Head Screws.

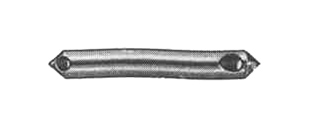

Double ended 1/4" shaft high speed steel
Single end (better for 0-80 and 1-72 Flat head $7.00
Carbide Spade Bit


$  9.50 each         For drilling shallow holes in heat treated steel (detent ball)




82 degree Countersink

$  9.00 each    For drilling shallow holes in heat treated steel (detent ball)

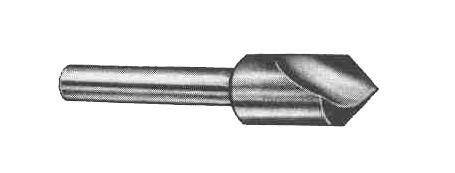

82-Degree Carbide Countersink

For Flat Head Screws. Not for hardened steel. $18.00

Washers

Bronze Washers    .005 or .010     Please specify pivot size
$  .60/pr

Teflon Washers    .010 or .015    Please specify pivot size
$  .50/pr

Nylatron Washers .013 or .015    Please specify pivot size
$  .50/pr

Stop Pins:

Precision Ground

Heat Treated (RC 60)

3/32" x 3/8"              $  .40

1/8" x 3/8"                $  .40

3/16" x 1/2"              $  .40

Precision REAMERS

(for perfect holes)

Provided with appropriate drill bit

3/32" REAMER with #43 Drill bit        $8.50 each

1/8"    REAMER with #31 drill bit      $  8.50 each

3/16"  REAMER with # 13 drill bit     $  10.00 each

1/4"    REAMER with # 1 drill bit       $12.00 each

Counter Bore

For Handle Screws
#0 for 0-80 Button and Pan Head Screws              $18.00
#1 for 1-72 Button and Pan Head Screw                $18.00

For Pivot Pin Screws
#2 for 2-56 Button Head Screws 1/8" pilot for 1/8" pivot $14.00
#4 for 4-40 Button Head Screws 3/16" pilot for 3/16" pivot $14.00
1/16"  Detent Balls 440-C stainless steel (use #53 drill)                                           $   .20 each
High Speed Steel Taps

Tap             Tap Drill                Clearance drill                   Price

0-80            3/64"                             1/16"                           $  9.50 each

1-72            #53 or 1/16"                 5/64"                           $  9.50 each

2-56            #50                               #43                               $  9.00 each

4-40            #43                               #31                               $  6.00 each

Titanium 6-AL 4 V Sheet

Thickness                         Size                                                         Price

.032                                10 x 12      $29.00

.040                                10 x 12      $35.00

.050                                10 x 12      $45.00

.060 (.062)                     10 x 12        $55.00

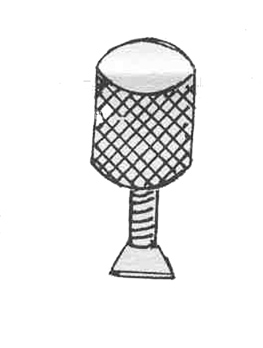

Stainless Thumb Studs

3/16" X 3/16" knurled sides, drilled and tapped for 1-72
Flat Head Screws (included) $1.50





Please add $6.50 for shipping & handling (Priority Mail)

Foreign orders please add $  9.00 for Global Priority

Visa/Mastercard accepted, C.O.D. or Billing Account net due within 30 days

If you have any questions, please call or fax me at (320)558.6128
